Why would anyone want a `new' sort of computer?

What are (everyday) computer systems good at... .....and not so good at?

Good at	Not so good at
Fast arithmetic	Interacting with noisy data or data from the environment
Doing precisely what the programmer programs them to do	Massive parallelism
	Massive parallelism
	Fault tolerance
	Adapting to circumstances

Where can neural network systems help?

where we can't formulate an algorithmic solution.
where we can get lots of examples of the behaviour we require.
where we need to pick out the structure from existing data.

What is a neural network?

Neural Networks are a different paradigm for computing:

von Neumann machines are based on the processing/memory abstraction of human information processing.
neural networks are based on the parallel architecture of animal brains.

Neural networks are a form of multiprocessor computer system, with

simple processing elements
a high degree of interconnection
simple scalar messages
adaptive interaction between elements

A biological neuron may have as many as 10,000 different inputs, and may send its output (the presence or absence of a short-duration spike) to many other neurons. Neurons are wired up in a 3-dimensional pattern.

Real brains, however, are orders of magnitude more complex than any artificial neural network so far considered.

Example: A simple single unit adaptive network:

The network has 2 inputs, and one output. All are binary. The output is

1 if W

₀ *I₀ + W₁ * I₁ + W_b > 0

0 if W

₀ *I₀ + W₁ * I₁ + W_b <= 0

We want it to learn simple OR: output a 1 if either I₀ or I₁ is 1.

Algorithms and Architectures.

The simple Perceptron:

The network adapts as follows: change the weight by an amount proportional to the difference between the desired output and the actual output.

As an equation:

Δ W

_i = η * (D-Y).I_i

where

η

is the learning rate, D is the desired output, and Y is the actual output.

This is called the Perceptron Learning Rule, and goes back to the early 1960's.

We expose the net to the patterns:

I₀	I₁	Desired output
0	0	0
0	1	1
1	0	1
1	1	1

We train the network on these examples. Weights after each epoch (exposure to complete set of patterns)

At this point (8) the network has finished learning. Since (D-Y)=0 for all patterns, the weights cease adapting. Single perceptrons are limited in what they can learn:

If we have two inputs, the decision surface is a line. ... and its equation is

I

₁ = (W₀/W₁).I₀ + (W_b/W₁)

In general, they implement a simple hyperplane decision surface

This restricts the possible mappings available.

Developments from the simple perceptron:

Back-Propagated Delta Rule Networks (BP) (sometimes known and multi-layer perceptrons (MLPs)) and Radial Basis Function Networks (RBF) are both well-known developments of the Delta rule for single layer networks (itself a development of the Perceptron Learning Rule). Both can learn arbitrary mappings or classifications. Further, the inputs (and outputs) can have real values

Back-Propagated Delta Rule Networks (BP)

is a development from the simple Delta rule in which extra hidden layers (layers additional to the input and output layers, not connected externally) are added. The network topology is constrained to be feedforward: i.e. loop-free - generally connections are allowed from the input layer to the first (and possibly only) hidden layer; from the first hidden layer to the second,..., and from the last hidden layer to the output layer.

Typical BP network architecture:

The hidden layer learns to recode (or to provide a representation for) the inputs. More than one hidden layer can be used.

The architecture is more powerful than single-layer networks: it can be shown that any mapping can be learned, given two hidden layers (of units).

The units are a little more complex than those in the original perceptron: their input/output graph is

As a function:

Y = 1 / (1+ exp (-k.(Σ W

_in* X_in))

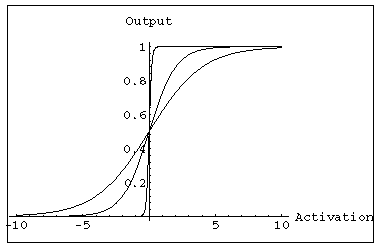

The graph shows the output for k=0.5, 1, and 10, as the activation varies from -10 to 10.

Training BP Networks

The weight change rule is a development of the perceptron learning rule. Weights are changed by an amount proportional to the error at that unittimes the output of the unit feeding into the weight.

Running the network consists of

Forward pass:: the outputs are calculated and the error at the output units calculated.
Backward pass:: The output unit error is used to alter weights on the output units. Then the error at the hidden nodes is calculated (by back-propagating the error at the output units through the weights), and the weights on the hidden nodes altered using these values.

For each data pair to be learned a forward pass and backwards pass is performed. This is repeated over and over again until the error is at a low enough level (or we give up).

Radial Basis function Networks

Radial basis function networks are also feedforward, but have only one hidden layer.

Typical RBF architecture:

Like BP, RBF nets can learn arbitrary mappings: the primary difference is in the hidden layer.

RBF hidden layer units have a receptive field which has a centre: that is, a particular input value at which they have a maximal output.Their output tails off as the input moves away from this point.

Generally, the hidden unit function is a Gaussian:

Gaussians with three different standard deviations.

Training RBF Networks.

RBF networks are trained by

deciding on how many hidden units there should be
deciding on their centres and the sharpnesses (standard deviation) of their Gaussians
training up the output layer.

Generally, the centres and SDs are decided on first by examining the vectors in the training data. The output layer weights are then trained using the Delta rule. BP is the most widely applied neural network technique. RBFs are gaining in popularity.

Nets can be

trained on classification data (each output represents one class), and then used directly as classifiers of new data.
trained on (x,f(x)) points of an unknown function f, and then used to interpolate.

RBFs have the advantage that one can add extra units with centres near parts of the input which are difficult to classify. Both BP and RBFs can also be used for processing time-varying data: one can consider a window on the data:

Networks of this form (finite-impulse response) have been used in many applications.

There are also networks whose architectures are specialised for processing time-series.

Unsupervised networks:

Simple Perceptrons, BP, and RBF networks need a teacher to tell the network what the desired output should be. These are supervised networks.

In an unsupervised net, the network adapts purely in response to its inputs. Such networks can learn to pick out structure in their input.

Applications for unsupervised nets

clustering data:: exactly one of a small number of output units comes on in response to an input.
reducing the dimensionality of data:: data with high dimension (a large number of input units) is compressed into a lower dimension (small number of output units).

Although learning in these nets can be slow, running the trained net is very fast - even on a computer simulation of a neural net.

Kohonen clustering Algorithm:

- takes a high-dimensional input, and clusters it, but retaining some topological ordering of the output.

After training, an input will cause some the output units in some area to become active.

Such clustering (and dimensionality reduction) is very useful as a preprocessing stage, whether for further neural network data processing, or for more traditional techniques.

Where are Neural Networks applicable?

..... or are they just a solution in search of a problem?

Neural networks cannot do anything that cannot be done using traditional computing techniques, BUT they can do some things which would otherwise be very difficult.

In particular, they can form a model from their training data (or possibly input data) alone.

This is particularly useful with sensory data, or with data from a complex (e.g. chemical, manufacturing, or commercial) process. There may be an algorithm, but it is not known, or has too many variables. It is easier to let the network learn from examples.

Neural networks are being used:

in investment analysis:: to attempt to predict the movement of stocks currencies etc., from previous data. There, they are replacing earlier simpler linear models.
in signature analysis:: as a mechanism for comparing signatures made (e.g. in a bank) with those stored. This is one of the first large-scale applications of neural networks in the USA, and is also one of the first to use a neural network chip.
in process control:: there are clearly applications to be made here: most processes cannot be determined as computable algorithms. Newcastle University Chemical Engineering Department is working with industrial partners (such as Zeneca and BP) in this area.
in monitoring:: networks have been used to monitor
in marketing:: networks have been used to improve marketing mailshots. One technique is to run a test mailshot, and look at the pattern of returns from this. The idea is to find a predictive mapping from the data known about the clients to how they have responded. This mapping is then used to direct further mailshots.

To probe further:

A rather longer introduction (which is more commercially oriented) is hosted by StatSoft, Inc.

There is also another introduction (including some history) by Stergiou and Siganos.

The Natural Computing Applications Forum runs meetings (with attendees from industry, commerce and academe) on applications of Neural Networks. Contact NCAF through their website, by telephone +44 (0)1332 246989, or by fax +44 (0)1332 247129

Internet addresses: NeuroNet which was at Kings College, London, was a European Network of Excellence in Neural Networks which finished in March 2001. Howwever, their website remains a very useful source of information

IEEE Computational Intelligence Society (was IEEE Neural Networks Society) http://www.ieee-cis.org/ publish a number of journals on neural networks and related areas.

I wrote six lectures on Back Propagation rather a long time ago, in a now defunct WP. Still, they are readable...

Newscomp.ai.neural-nets has an very useful set of frequently asked questions (FAQ's), available as a WWW document at: ftp://ftp.sas.com/pub/neural/FAQ.html

Courses

Quite a few organisations run courses: we used to run a 1 year Masters course in Neural Computation: unfortunately, this course in in abeyance. We can even run courses to suit you. We are about to start up a centre in Computational Intelligence, called INCITE.

More Specific Information

Some further information about applications can be found from the book Stimulation Initiative for European Neural Applications (SIENA).

For more information on Neural Networks in the Process Industries, try A. Bulsari's home page .

The company BrainMaker has a nice list of references on applications of its software package that shows the breadth of applications areas.

Journals.

The best journal for application-oriented information is

Neural Computing and Applications, Springer-Verlag. (address: Sweetapple Ho, Catteshall Rd., Godalming, GU7 3DJ)

Books.

There's a lot of books on Neural Computing. See the FAQ above for a much longer list.

For a not-too-mathematical introduction, try

Fausett L., Fundamentals of Neural Networks, Prentice-Hall, 1994. ISBN 0 13 042250 9 or

Gurney K., An Introduction to Neural Networks, UCL Press, 1997, ISBN 1 85728 503 4

Haykin S., Neural Networks , 2nd Edition, Prentice Hall, 1999, ISBN 0 13 273350 1 is a more detailed book, with excellent coverage of the whole subject.

Where are neural networks going?

A great deal of research is going on in neural networks worldwide.

This ranges from basic research into new and more efficient learning algorithms, to networks which can respond to temporally varying patterns (both ongoing at Stirling), to techniques for implementing neural networks directly in silicon. Already one chip commercially available exists, but it does not include adaptation. Edinburgh University have implemented a neural network chip, and are working on the learning problem.

Production of a learning chip would allow the application of this technology to a whole range of problems where the price of a PC and software cannot be justified.

There is particular interest in sensory and sensing applications: nets which learn to interpret real-world sensors and learn about their environment.

New Application areas:

Pen PC's: PC's where one can write on a tablet, and the writing will be recognised and translated into (ASCII) text.
Speech and Vision recognition systems: Not new, but Neural Networks are becoming increasingly part of such systems. They are used as a system component, in conjunction with traditional computers.
White goods and toys: As Neural Network chips become available, the possibility of simple cheap systems which have learned to recognise simple entities (e.g. walls looming, or simple commands like Go, or Stop), may lead to their incorporation in toys and washing machines etc. Already the Japanese are using a related technology, fuzzy logic, in this way. There is considerable interest in the combination of fuzzy and neural technologies.

Some comments (added September 2001)

Reading this through, it is a bit outdated: not that there's anything incorrect above, but the world has moved on. Neural Networks should be seen as part of a larger field sometimes called Soft Computing or Natural Computing. In the last few years, there has been a real movement of the discipline in three different directions:

Neural networks, statistics, generative models, Bayesian inference: There is a sense in which these fields are coalescing. The real problem is making conclusions from incomplete, noisy data, and all of these fields offer something in this area. Developments in the mathematics underlying these fileds have shown that there are real similarities in the techniques used. Chris Bishop's book Neural Networks for Pattern Recognition, Oxford University Press is a good start on this area.
Neuromorphic Systems: Existing neural network (and indeed other soft computing) systems are generally software models for solving static problems on PCs. But why not free the concept from the workstation? The area of neuromorphic systems is concerned with real-time implementations of neurally inspired systems, generally implemented directly in silicon, for sensory and motor tasks. Another aspect is direct implementation of detailed aspects of neurons in silicon (see Biological Neural Networks below). The main centres worldwide are at the Institute for neuroinformatics at Zurich, and at the Center for Neuromorphic Systems Engineering at Caltech. There are also some useful links from the Institute for Neuromorphic Engineering. Indeed, the US DARPA has now discovered Neuromorphic Systems, and are funding research in this area (e.g. SyNAPSE).
Biological Neural Networks: There is real interest in how neural network research and neurophysiology can come together. The pattern recognition aspects of Artificial Neural Networks don't really explain too much about how real brains actually work. The field called Computational Neuroscience has taken inspiration from both artificial neural networks and neurophysiology, and attempts to put the two together.
